Form Follows Tool

Lesson 4:
Form Follows Tool

In the last lesson, you learned how the distribution of weight in the letters plays a role in readability. You also read that the most readable letters are based on the Renaissance form principles, which are based on letters written with a broad nib. In this lesson I will explain the theory of Gerrit Noordzij, which is easy to understand, but a very powerful tool for teachers and students alike.

Gerrit Noordzij (2 April 1931 – 17 March 2022) was a Dutch typographer, typeface designer, and author. He started teaching letters and calligraphy at the Royal Academy of Art in The Hague in 1960. Motivated to make type accessible to his students, he identified the stroke of the pen as the central idea in the making of letter forms. What began as a method to make his students into better graphic designers grew, in various iterations and publications, into a comprehensive approach to type design. The contrast cube became an iconic model of his ideas. Noordzij recognised the possibilities of the computer in type design early on. He encouraged his students to not only study the pens and their shapes, but also adopt a critical view on making digital tools (and doing the math). By the time Noordzij retired in 1990, his methods were in use in type classes and workshops all over the world. His book The Stroke has been translated in (amongst others) English, German, French, Italian, Spanish, Portuguese, Korean, Croatian and Russian. And of course, it has been the practical and theoretical foundation of the KABK TypeMedia master for over twenty years.

Source: Wikipedia

Gerrit teaching my former classmates Mauro and Donald. Btw. Donald is the founder of the type foundry Vette Letters, which also distributes my fonts.
Image Source: Dutch Graphic Roots

The Gerrit Noordzij Cube

“The Stroke, theory of writing”, 2019 and the Dutch original “De Streek, theorie van het schrift”, 1985

On the cover of the book “The Stroke, theory of writing” you see the famous cube by Gerrit Noordzij. What you see here are all the “relevant” principles of type design, according to Noordzij. As in the table of readability Albert-Jan Pool there are two extremes, the form principles deriving from writing letters with the broad nib (Renaissance / Humanistic / Dynamic) and the form principles deriving from the pointed pen (Classic / Modern / Static). Similar to a Variable Font all in-between states are interpolated. Pool refers to the typefaces in between the two extremes as “Baroque / Hybrid / Transitional”. In the Noordzij cube, you have another two extremes, or masters as you would call them in a variable font, low contrast, and high contrast. This way of looking at typefaces is very interesting as commonly a low-contrast typeface would be classified by most designers as Sans Serif fonts because most typefaces without serifs have a low contrast. Putting all Sans Serif fonts into one category ignores their subtle differences which yet play a big role in their design and ultimately in their readability. By focusing on as few form principles as possible, the theory becomes easy to understand and teach, while other classifications need many categories which are based on a mix of different principles.

Translation and Expansion

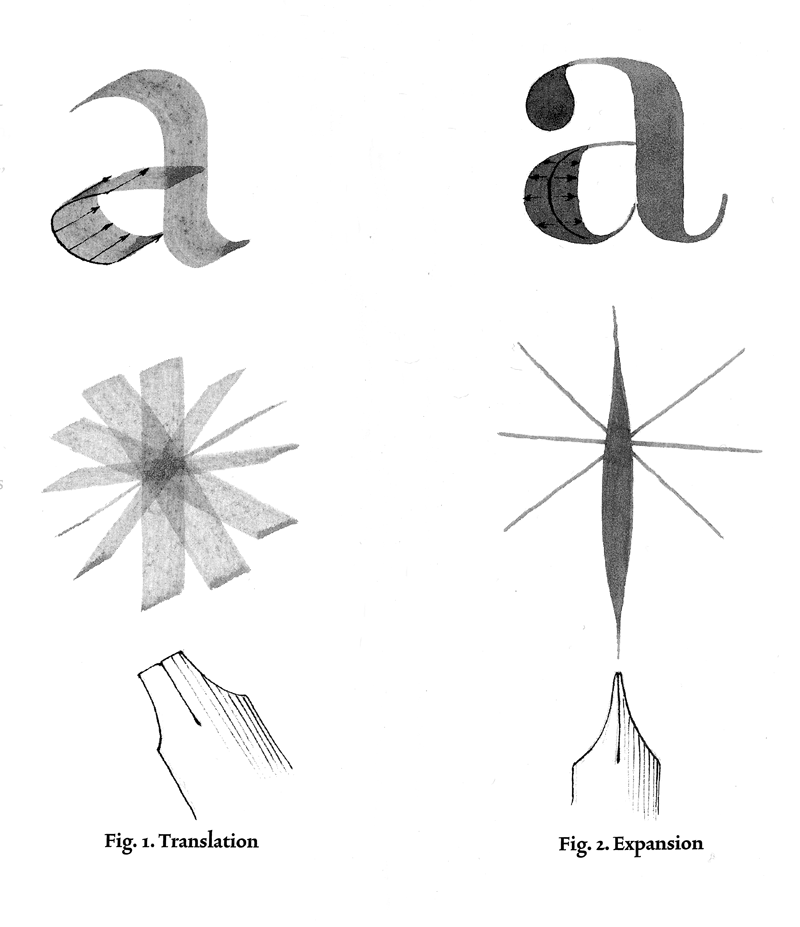

Gerrit Noordzij calls the contrasts generated with the broad nib pencil, translation and the contrasts generated with the pointed or flexible sharp nib pencil, expansion. This drawing by Noordzij from his book “The Stroke, theory of writing” illustrates why. While the contrast writing with the broad nip appears from the angle in which the pen is held, the contrasts from the pointed nib appears by expanding the stroke by pressing down the nib and separating its parts.

Source: The Stroke, theory of writing, Gerrit Noordzij

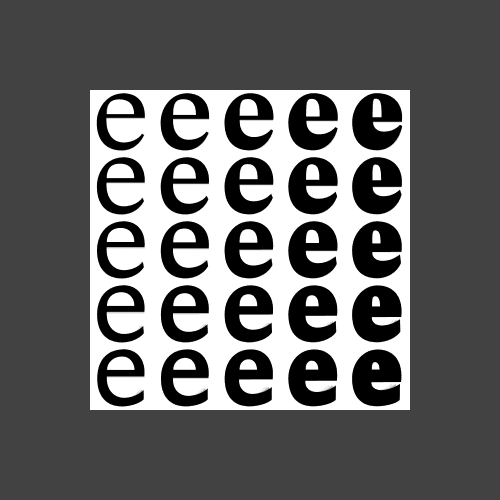

For many years not all interpolations between the four extremes, translation, expansion, low and high contrast were visible. Just van Rossum animated the cube with Drawbot and made it visible. Petr van Blokland writes: The animated cube is the ultimate result of Gerrit’s theory building up over the years. Originally starting as two squares, he combined the separate principles of contrast later by interpolating between them. Just van Rossum animated the cube in Daily Drawbot, showing what is behind the layers. As a static image (e.g. used on the cover of Gerrit’s “The Stroke of the Pen“) most of the layers at the back are hidden. The squares are respectively called translation (front) and expansion (back), names for the construction of thick-thin in letters. Translation relates to broad nib pencils where expansion is based on the contrast created by flexible sharp nib pencils.

Source: Just van Rossum

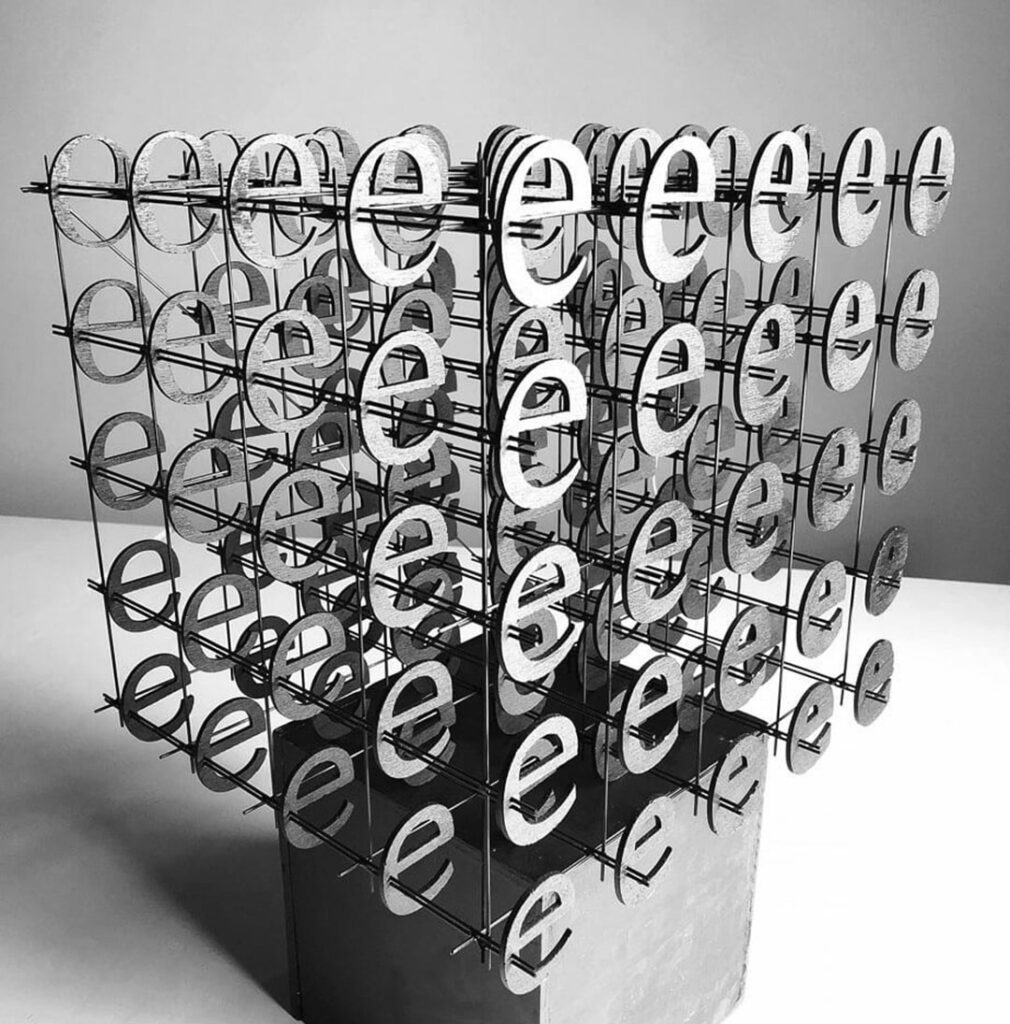

Another interesting example of how Noordzij’s students explored new ways to show more interpolations than Noordzij did on the cover of his book “The Stroke of the Pen” is Erik van Blokland’s Metal Cube.

Source: Erik van Blokland

For a more in-depth presentation of the Noordzij cube, I really recommend watching Erik van Blokland’s brilliant Type at Cooper lecture: The Cube: practical research in theoretical models.

Excercise:

If you have the time and motivation, I recommend reading and watching the sources I listed in the footnote section. Some of the bibliographic sources have links to PDFs and you might be able to get one of the last copies of “The Stroke” at Typotheque. Me, being a former KABK student and KABK teacher, Noordzij had a big influence on my understanding of type design. A deep understanding of writing will help you with type design, even if it is a modular type design.

Next Lesson:
Form Follows Grid

Footnotes:

Watch Gerrit Noordzij in German, interviewed by Jürgen Siebert.

Noordzij explains sketching type during his talk at TypeMedia 2010.
